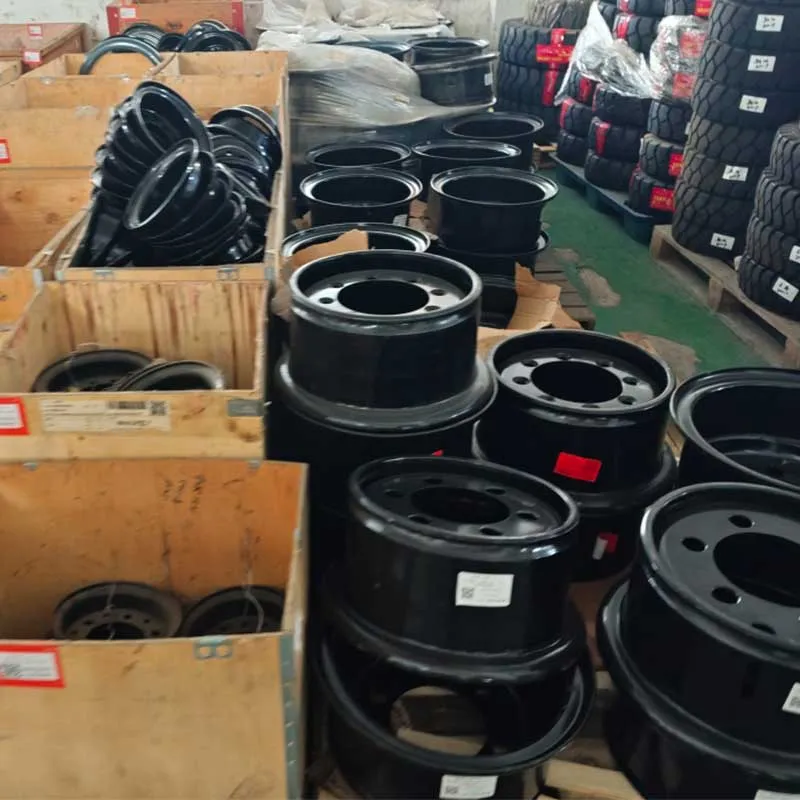

BYD forklift wheel steel ring

First, the basic product information

This product is the wheel steel rim (rim assembly) supporting BYD counterbalanced heavy-duty lithium battery forklift. It is the bearing supporting part of the forklift walking system and belongs to the conventional BYD forklift accessories. The product is developed according to the original specifications and is suitable for the forklift tires of the corresponding specifications. It can replace the deformed, rusted and damaged steel rims of the original car. It is suitable for wheel repair and replacement, tire renovation and other supporting scenarios.

II. Core Functions

1. Tire mounting bearing base


   As the installation support structure of the tire, the carcass is fixed and the weight of the body and cargo is carried, and the load is evenly transmitted to the tire to assist in ensuring the stability of the vehicle during walking.


2. Axle connection torque transmission


   The center hole and bolt hole are fixed to the axle hub of the forklift to transmit the driving and steering torque, maintain the reliable connection between the wheel and the axle, and adapt to the working characteristics of the forklift at low speed and heavy load.


3. Chassis structure buffer protection


   Cooperate with the tire to cushion the impact force caused by the bumping road surface, reduce the impact of vibration on the axle and chassis components, and play a structural support and protection role for the walking system.


III. Product technical characteristics

1. Factory size adaptation


   It is developed according to the original size standard of BYD forklift. The center aperture, bolt hole position and rim diameter are consistent with the original specifications. It can be installed and replaced in situ under the normal working conditions of the corresponding model, and it is suitable for the matching tire specifications of the original car.


2. High strength steel forming structure


   Made of steel forming process, the structural rigidity and load-bearing capacity meet the design standards of industrial vehicles, which can adapt to the daily heavy-duty operation conditions of forklifts, and the structural strength meets the requirements of vehicle use.


3. Anti-corrosion and wear-resistant surface treatment


   The surface is treated with a black anti-corrosion coating, which has good anti-rust and wear resistance. It can adapt to a variety of operating environments such as warehouses, factory roads, and outdoor venues, which helps to prolong the service life of components.


4. Standardized structure for easy installation


   The rim edge is regularly treated, and the tire disassembly and assembly operation is convenient; the bolt hole alignment is clear, and the alignment is accurate during installation, which helps to improve the efficiency of maintenance and assembly.


IV. Adaptation range

It is suitable for BYD CPD20, CPD25, CPD30, CPD35 and other series of counterbalanced heavy-duty lithium-ion forklifts, covering the front and rear wheel specifications of the corresponding models. It is a commonly used replacement for walking systems in BYD accessories. It is suitable for maintenance and replacement of steel rims such as deformation and cracking, rust damage, and bolt hole wear and roundness.

V. Goods and after-sales instructions

• Product status: brand new original specification wheel steel ring, factory size verification and appearance inspection, parts with protective packaging;


• Installation tips: It is recommended to install by professional maintenance personnel. The fastening bolts are operated according to standard torque. After installation, check the tire fit and the coaxiality of the wheel;


• After-sales description: Failures caused by non-human physical damage and abnormal installation and use can enjoy the agreed quality assurance service.
