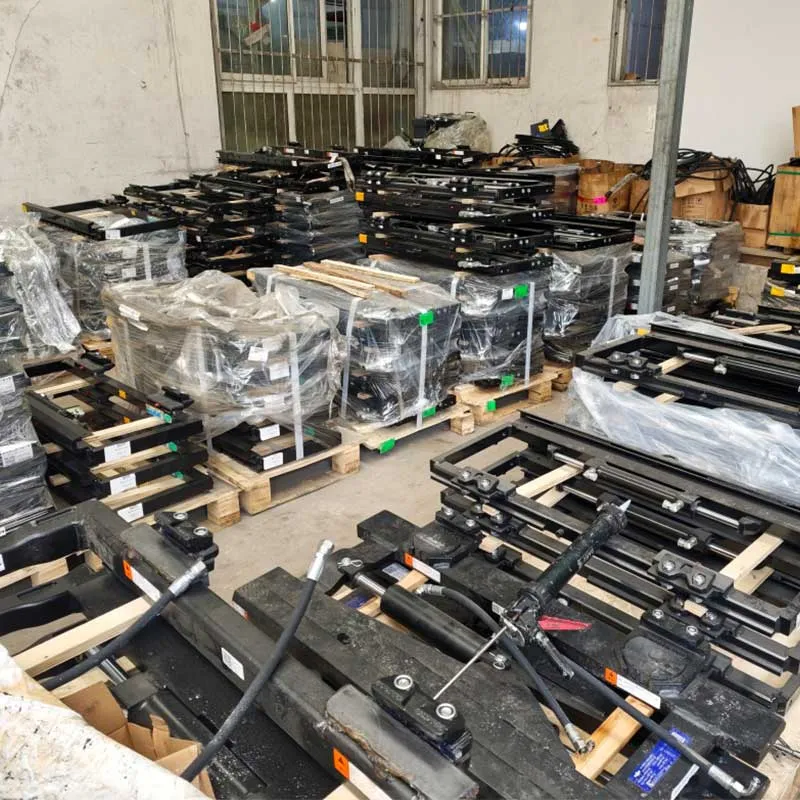

BYD forklift gantry side shifter assembly

First, the basic product information

This product is the side shifter assembly matched by BYD counterbalanced heavy-duty lithium battery forklift. It is a hydraulic attachment accessory commonly used in forklifts and belongs to conventional BYD forklift accessories. The product integrates side-shifting cylinder, sliding guide rail, hanging frame and other structures. It is developed according to the specifications of the original door frame, and can realize the lateral movement of the fork left and right. It is suitable for loading and unloading alignment function installation, original vehicle side shifter fault replacement and other scenarios.

II. Core Functions

1. Fork lateral alignment adjustment


   The hydraulic drive drives the fork to move left and right as a whole, and the alignment position of the fork can be adjusted without moving the vehicle, which is convenient for accurate alignment when the goods are forked and stacked, and helps to improve the efficiency of loading and unloading operations.


2. Hydraulic driven smooth transmission


   Relying on the forklift hydraulic system to provide power, the side movement is smooth, the position can be flexibly adjusted within the travel range, and it is suitable for various operation needs such as pallet alignment and cargo return.


3. Door frame supporting bearing structure


   It is installed with the fork rack of the original car to undertake the load of the fork and the goods. The structural force conforms to the design standard of the gantry to ensure the load stability during the lateral movement.


III. Product technical characteristics

1. Original specification adaptation design


   Developed according to BYD forklift gantry installation standards, the hanging size and oil circuit interface are consistent with the original specifications. Under the normal working conditions of the corresponding model, it can be installed with the original vehicle fork rack, and the adaptability is good.


2. High strength guide frame structure


   Adopting high-strength steel frame and wear-resistant guide rail, the structural rigidity meets the design standards of industrial attachments, which can adapt to the daily heavy-duty operation conditions of forklifts, and the bearing capacity meets the rated requirements of vehicles.


3. Sealed cylinder durable design


   The matching hydraulic cylinder adopts a sealed structure, which has a low risk of hydraulic leakage and can maintain stable hydraulic transmission performance in conventional storage and factory operating environments.


4. Assembled pre-assembly design


   The pre-installation and debugging of the frame, cylinder and guide rail components is completed after leaving the factory, and the assembly structure is easy to install and replace, which helps to improve the efficiency of installation and maintenance operations.


IV. Adaptation range

It is suitable for BYD CPD20, CPD25, CPD30, CPD35 and other series counterbalanced weight lithium-ion forklifts, corresponding to conventional tonnage gantry specifications. It is a commonly used replacement part for hydraulic attachments in BYD accessories. It is suitable for maintenance and replacement of the original vehicle side shifter failure replacement, vehicle attachment functional installation, guide rail wear, cylinder leakage and other scenarios.

V. Goods and after-sales instructions

• Goods status: brand new original specification side shifter assembly, factory assembly performance testing, parts with protective packaging;


• Installation tips: It is recommended to install and debug by professional maintenance personnel, pay attention to cleaning when connecting the hydraulic oil circuit, and avoid impurities from entering the hydraulic system;


• After-sales description: Failures caused by non-human physical damage and abnormal overload use can enjoy the agreed quality assurance service.
